Indicators

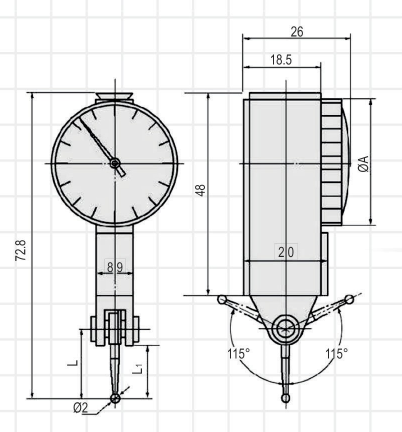

Dial test Indicator

long stylus

Code_No	Measuring Range	Accuracy	A_D	Dial_Reading	L	L1	Least Count
IYTL08	0.8	± 0.015	37.5	0-40-0	46.4	42.4	0.01

All Values in mm

Inspection Report with Declartion of conforming

Hardened Stainless Steel

Fine Adjustment

Slider with locking screw

Satin chrome scale background

Corrugated box

Includes interchangeable carbide tipped scriber
