Non-destructive testing(NDT) Equipments

leeb hardness tester

Core Advantages

  • Dual coil technology provides good measurement accuracy and repeatability.
  • Built-in orientation sensor automatically compensates for measurement errors in different impact directions.
  • Ten types of measurement materials can be tested, a wide range of applications.
  • Multiple hardness scales automatically switch, no need for manual calculate.
  • Tungsten carbide impact head with hardness comparable to diamond.
  • User-calibratable to reduce measurement errors.
  • High accuracy, guaranteed to be tested by authoritative metrology institutes.
  • Dynamic hibernation algorithm, large capacity lithium battery.

    • leeb hardness tester

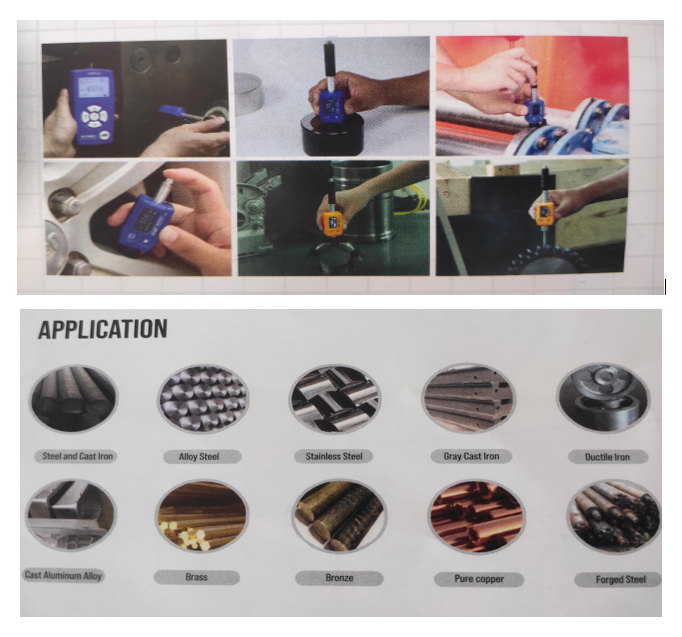

  • Based on the Leeb hardness measurement principle, the portable Leeb hardness tester series products are divided into two categories: integrated and split, covering D, DC, DL, C and many other types of impact devices.The instruments can be used for hardness testing of a wide range of metal materials and are widely used in hardware, foundry, mould and other industries.

    • Cases

    Model

    		 KC251D KC252D KC252DC KC252DL KC252C

    Types

    		 Split Integrated

    Impact device types

    		 Impact device D Impact device DC Impact device DL Impact device C

    Applications

    		 Common metal materials Bores or narrow areas Slender, narrow groove, gears or bottom Surface hardening layers, small or thin parts

    Hardness Scales

    		 HL, HV, HB, HS, HRA, HRB, HRC

    HL, HV, HB, HS, HRC

    Measuring Range

    HLD(170-960)

    HV(83-976)

    HB(30-651)

    HRC(17.6-68.5)

    HS(26.4-99.5)

    HRB(13.5-100)

    HRA(60-85.8)

    HLDL(170-960)

    HV(194-976)

    HB(188-651)

    HRC(17.6-68.5)

    HS(29.5-99.5)

    HRB(91.5-100)

    HRA(60-85.8))

    HLC(170-960)

    HV(80-996)

    HB(80-683)

    HRC(20-69.5)

    HS(31.9-102.3)

    Resolution

    		 1HL

    Accuracy

    		 ±6 HL

    Repeatability

    		 6 HL

    Power supply

    		 2*AA alkaline dry batteries

    Rechargeable lithium batteries

    Size

    Host: 142 x 72 x 28 mm

    Probe: 148 x 31 x 25 mm

    148 x 34 x 24 mm

    		 88 x 34 x 24 mm 203 x 34 x 24 mm 140 x 34 x 24 mm
