coating thickness gauge

Core Advantages

  • Dual use for ferrous and non-ferrous metal substrate.
  • Digital probe can get stable data in repeated tests.
  • Responsive, fast measurement in 0.5s.
  • Ruby probe, longer service life.
  • Accurate data, ensure to pass the inspection of International Institute of Metrology.
  • Small and portable, single button, simple operation.

    • coating thickness gauge

  • The coating thickness gauge is used for detecting the coating thickness on metal surface.It adopts Hall effect and eddy current principles.It can be used to test the thickness of coatings, varnishes, enamels, etc.on ferromagnetic metal substrates such as steel.It can also be used to measure non-conductive coating thickness such as anodized coatings, ceramics on non-magnetic metal substrates such as copper, aluminum, die-cast zinc, brass, etc.

    • Features

    Model

    		 KC220H KC221 KC223

    Probe Type

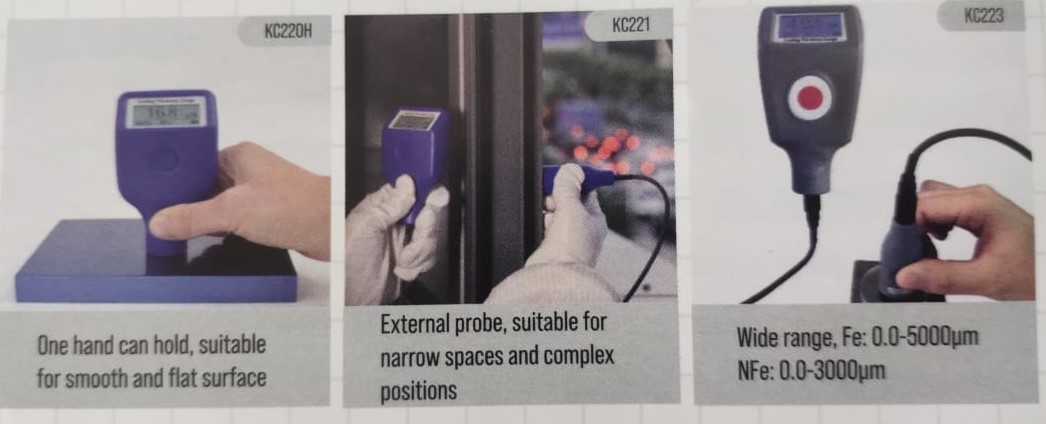

    		 Integrated type External probe External probe, wide range

    Measuring Range

    0.0-2000µm

    Fe: 0.0-5000µm/NFe: 0.0-3000µm

    Accuracy

    ≤ ± [3%H+2µm)

    H is the standard value

    		 ≤ ± [3%H+2µm):0-3000µm, H is the standard value

    ≤ ± [5%H+2µm):3000-5000µm, H is the standard value

    Resolution

    0.1µm: (0µm-99.9pm)

    1µm: (100µm-999pm)

    0.01mm:(1.00mm-2.00mm)

    0.1µm: (0µm-99.9pm)

    1µm: (100µm-999pm)

    0.01mm: (1.00mm-2.00mm)

    Probe Tip

    		 Ruby

    Measuring Principle

    Fe: Hall Effect/NFe: Eddy Current

    Unit

    µm/mil

    Measuring Interval

    		 0.5s

    Minimum Measuring Area

    ? = 25mm

    Minimum Curvature

    Convex: 5mm/Concave: 25mm

    Minimum Substrate Thickness

    		 Fe: 0.2mm/NFe: 0.05mm



    APPLICATION:


    Metal Substrate

    Coating Material

    Examples

    Measurable
    Ferromagnetic material: iron, cobalt, nickel, gadolinium

    Non-ferromagnetic metal: copper, aluminum, brass, etc.

    Galvanized iron, copper-plated iron

    		 ?
    Non-metallic materials: paint, coating, plastic, etc Iron spray paint, iron spray powder coating ?
    Ferromagnetic material: iron, cobalt, nickel, gadolinium Iron nickel plated ?

    Non-ferromagnetic metal: copper, aluminum, zinc, etc

    Non-conductive material: anodized, paint.

    Aluminum anodizing, copper painting

    		 ?

    Conductive material: various types of metals

    		 Copper chrome plating, copper zinc plating ?
