Core Advantages

Excellent timer chips provide fast, accurate readings.

Ultrasonic double-crystal probe.

Automatic gain switchable.

Two measurement modes: QC mode/statistics mode.

Three ways to adjust velocity during measuring.

High precision ensures they can pass.

Authoritative metrology institute.

ultrasonic thickness gauge

Ultrasonic thickness tester measures the wall thickness of metallic (cast iron, steel and aluminum) and non-metallic (ceramics, plastics and glass) substrates and any other ultrasonic wave-conductor using ultrasonic technology.Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side.The gauge does not ignore the thickness of external coatings on materials, it may be necessary to remove any coatings present on the measurement point for best measurement accuracy.

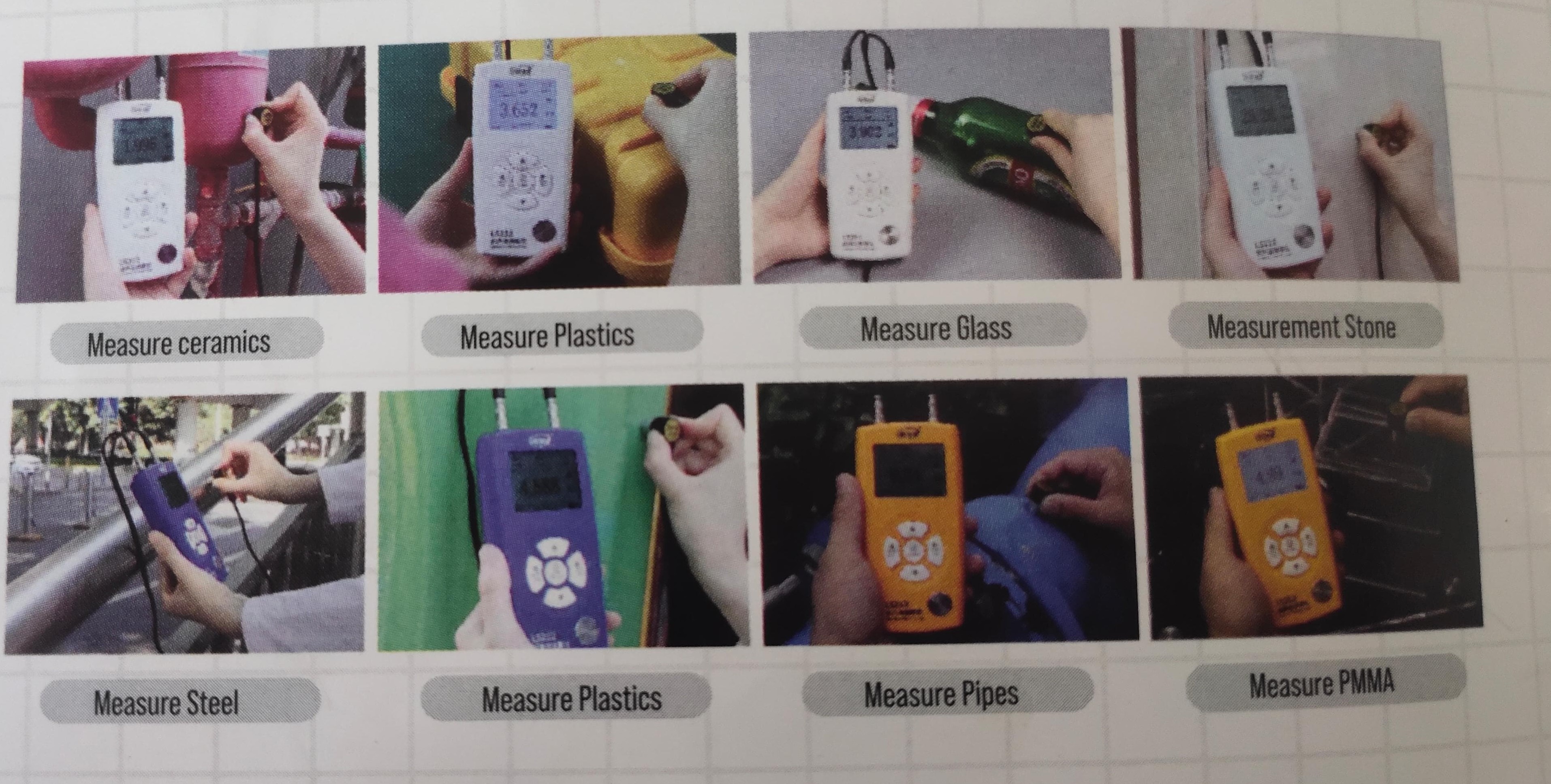

Cases

Model	KC213
Measuring Range	0.8~350mm(45#steel]
Resolution	0.8~10mm:0.01mm, 100~350mm:0.1mm
Accuracy	0.8~10mm:±0.05mm10~350mm:±0.5%H, is the standard value
Sound Velocity Range	1000~9999m/s
Probe Conditions	5MHz ? 10 double-crystal probe
Display	240 x 160 dot matrix LCD
Unit	mm/inch
Power Supply	2pcs of 1.5V AAA alkaline battery
Host Size	142 x 72 x 28 mm
