Micrometers

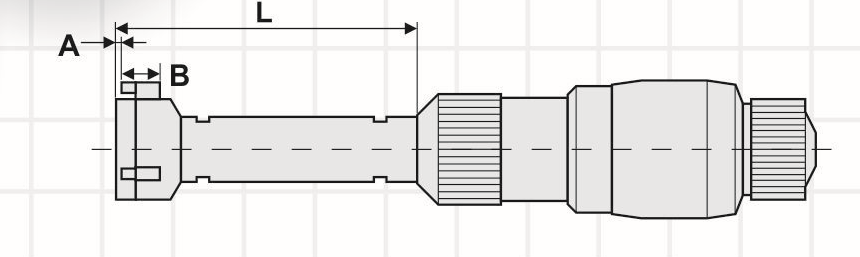

three point internal micrometer

Code_No	Measuring Range	Accuracy	A	B	L	Setting_Ring	Least Count
MIP8	6-8	±0.004	0.6	2.5	56	8	0.001
MIP10	8-10	±0.004	0.6	2.5	56	8	0.001
MIP12	10-12	±0.004	0.6	2.5	56	10	0.001
MIP16	12-16	±0.004	0.3	6	76	16	0.005
MIP20	16-20	±0.004	0.3	6	76	16	0.005
MIP25	20-25	±0.004	0.5	9	84	25	0.005
MIP30	25-30	±0.004	0.5	9	84	25	0.005
MIP40	30-40	±0.004	0.5	14	96	35	0.005
MIP50	40-50	±0.005	0.5	14	96	40	0.005
MIP63	50-63	±0.005	0.5	16.5	100	50	0.005
MIP75	62-75	±0.005	0.5	16.5	100	62	0.005
MIP88	75-88	±0.005	0.5	16.5	100	87	0.005
MIP100	87-100	±0.005	0.5	16.5	100	87	0.005

All Values in mm

Tungsten Carbidde Tipped

Supplied With Setting Ring

Ratchet Stop

Aluminium Case
