Digital height gauge

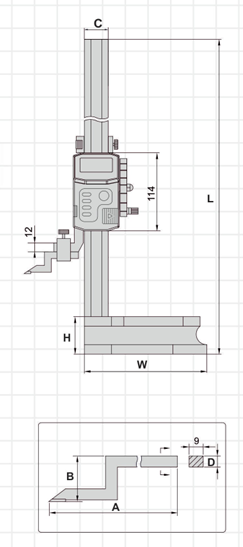

Code_No	Measuring Range	Accuracy	A	B	C	D	H	L	W	Least Count
HD1000	0-1000	± 0.07	110	37	50	10	70	1280	250	0.01
HD1500	0-1500	± 0.11	110	37	50	10	75	1800	280	0.01
HD2000	0-2000	± 0.14	110	37	50	10	75	2300	280	0.01

All Values in mm

Floating Zero

Inspection Report with Declartion of conforming

MM/Inch Conversion

Hardened Stainless Steel

Battery 1.5V LR44 Alkaline

Fine Adjustment

Wooden Case

low power consumption with long battery life

Data output convenient for relative and absolute measurement conversion

LCD-25mm

Slider with locking screw

Includes interchangeable carbide tipped scriber

Accurate Reading when Turned on
