Height Gauges

Digital height gauge

with hand wheel

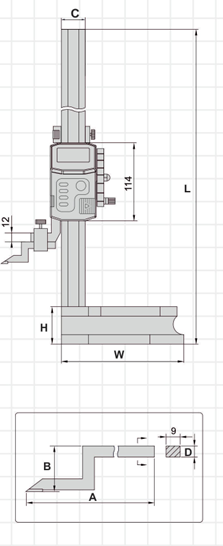

Code_No Measuring
Range 		Accuracy A B C D H L W Least Count
HD300 0-300 ± 0.04 80 30 35 9 55 515 180 0.01
HD600 0-600 ± 0.05 80 30 35 9 55 815 180 0.01
All Values in mm
Floating Zero
Inspection Report with Declartion of conforming
MM/Inch Conversion
Hardened Stainless Steel
Battery 1.5V LR44 Alkaline
Fine Adjustment
low power consumption with long battery life
Data output convenient for relative and absolute measurement conversion
LCD-25mm
Slider with locking screw
Corrugated box
Includes interchangeable carbide tipped scriber
Accurate Reading when Turned on
fitted with wheel drive
