Non-Standard Calipers

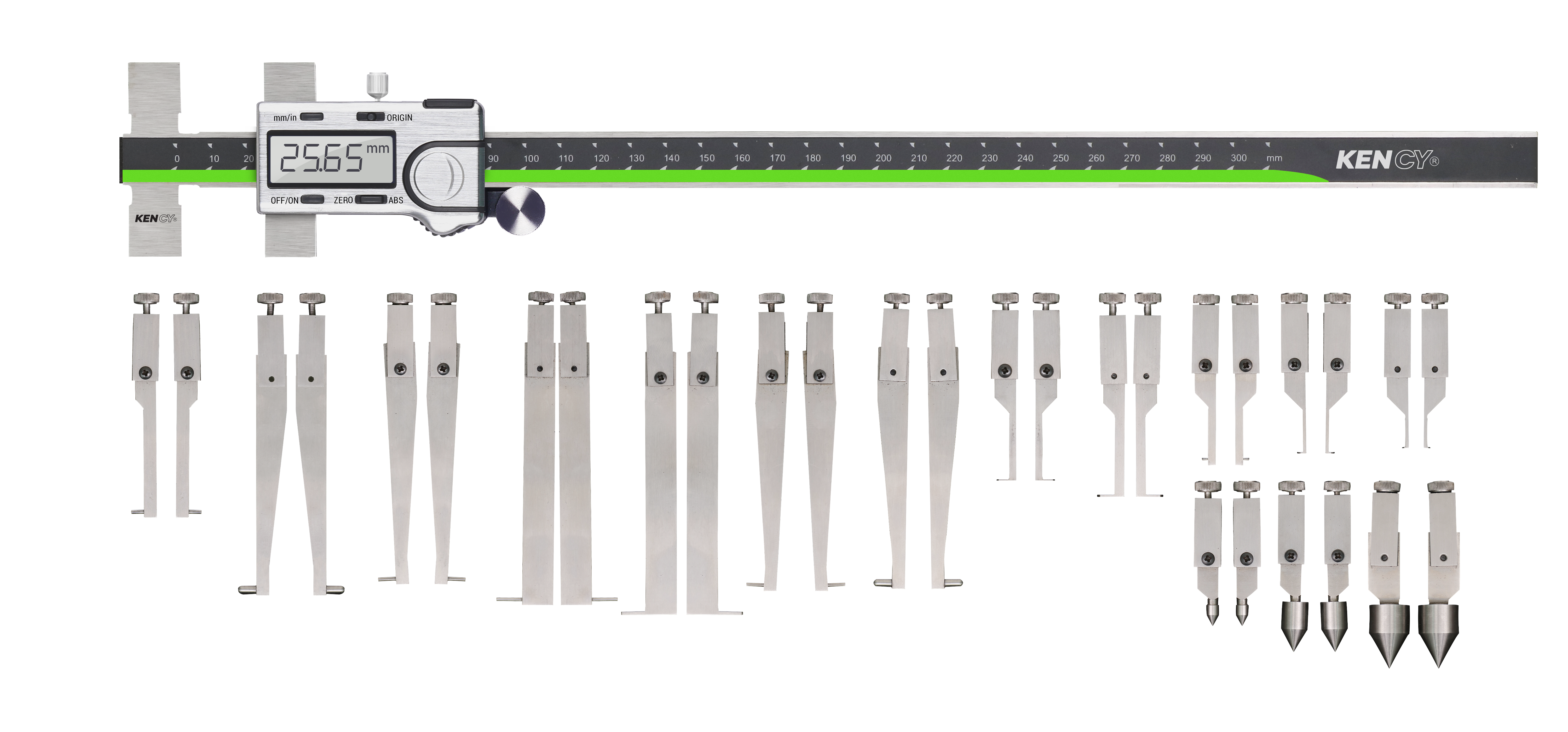

Universal Digital Caliper

Exchangeable Jaws




Code_No Measuring

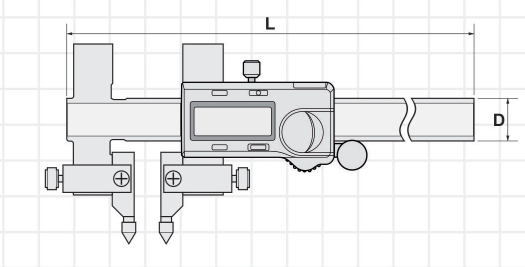

Range 		Accuracy L D Least Count
SDUE300 0-300 ± 0.06 400 17 0.01
All Values in mm
A B C E H
12 2.5 0.4 1 8
16 3.5 0.4 2 8
25 7.5 0.6 5 8
30 10 1 6.5 8
80 22 1.5 10 12
A B C E H
70 12 ∅ 2 7 12
70 12 ∅ 4 7 12
A B C E H
20 5 ∅ 1 2 8
40 10 ∅ 2 5 8
80 22 ∅ 2 10 12
A B C H
10 4 ∅ 5 8
20 4 ∅ 10 8
25 8 ∅ 15 12
A B C E H
70 12 ∅ 2 7 12
70 12 ∅ 4 7 12
MM/Inch Conversion
Suited Plastic Case
Hardened Stainless Steel
Battery 1.5V LR44 Alkaline
auto on[slide],auto off[5min]
low power consumption with long battery life
Slider with locking screw
