Single hook vernier depth gauge

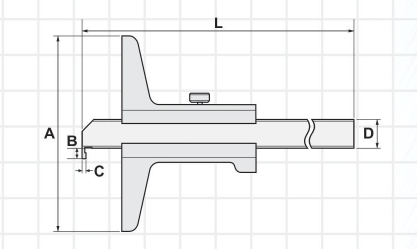

Code_No	Measuring Range	Accuracy	A	B	C	D	L	Least Count
DVS150	0-150	± 0.03	100	2.5	2	10	250	0.02
DVS200	0-200	± 0.03	100	2.5	2	10	300	0.02
DVS300	0-300	± 0.04	100	2.5	2	10	400	0.02
DVS500	0-500	± 0.05	150	10	5	11	605	0.02

All Values in mm

Hardened Stainless Steel

Fine Adjustment

Wooden Case

Slider with locking screw

Satin chrome scale background
